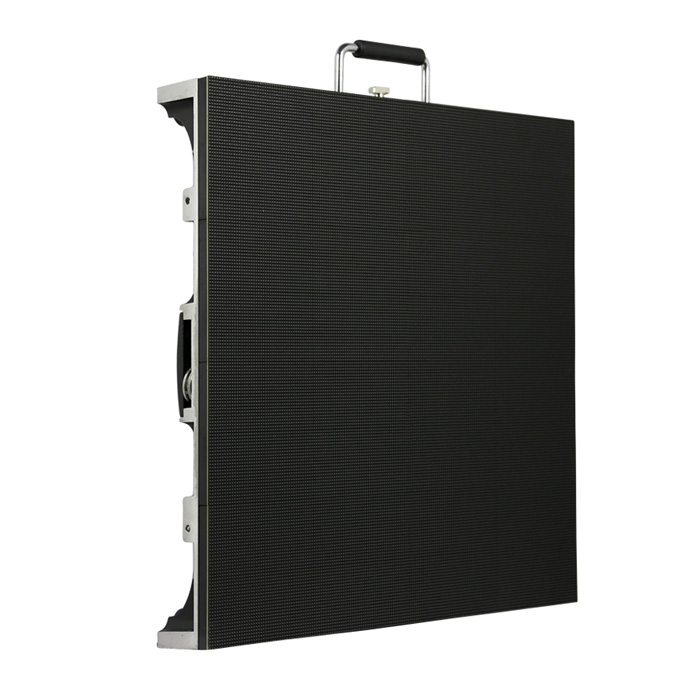

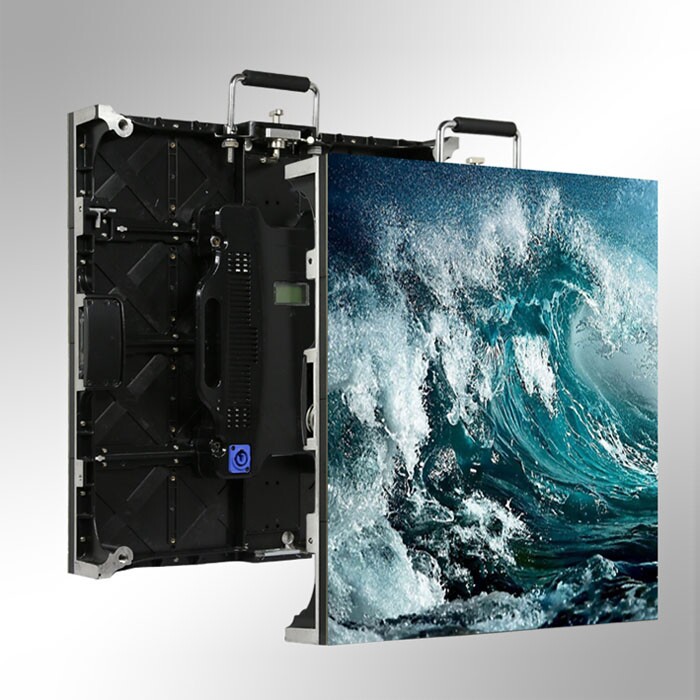

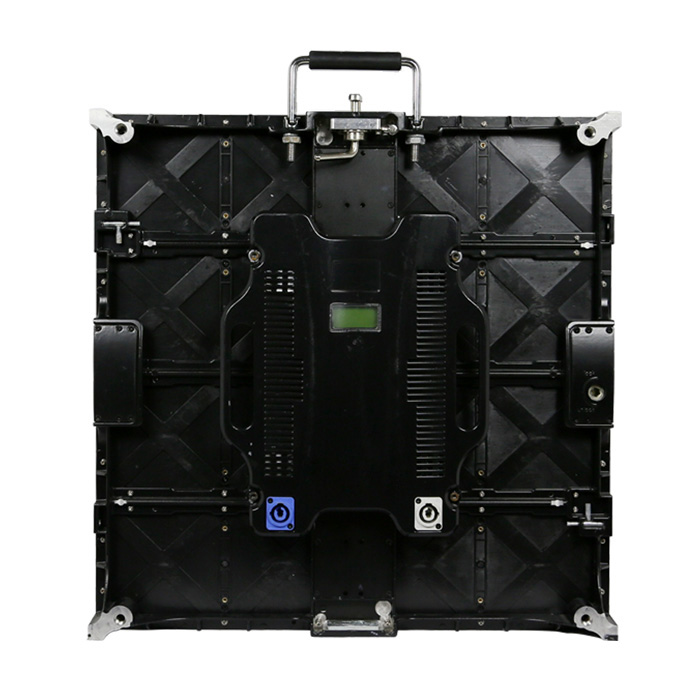

indoor pitch2.84mm led display
| Model No. | P2.84 | P3.91 |
| Pixel Pitch | 2.84mm | 3.91mm |
| Pixel Configuration | 1R1G1B | 1R1G1B |
| LED Encapsulation | SMD1010 | SMD2427 |
| Resolution | 123904dots/㎡ | 65536dots/㎡ |
| Brightness | 1300nit | 1300nit |
| Color Temperature | 6500-9500K | 6500-9500K |
| Drive Mode | 1/22 | 1/16 |
| Module size | 250*125mm | 250*125mm |
| Cabinet Size | 500*500*68mm | 500*500*68mm |
| Cabinet Resolution | 176*176 | 128*128 |
| Cabinet Weight | 7.5kg | 7.5kg |
| Max Power consumption | ≤560w/㎡ | ≤560w/㎡ |
| Average Power consumption | ≤280w/㎡ | ≤280w/㎡ |
| Best Viewing Angle | H:160°V:140° | H:160°V:140° |
| Refresh Rate | 1920-3840Hz | ≥1920Hz |
| Grey Scale | 14-16bit | 14-16bit |
| Best Viewing Distance | 1.5--50m | 1.5--50m |
| Protection Level | IP31 | |
| Cabinet Material | Die casting Aluminum | |
| Operation Voltage | 100V/220V/47-63Hz | |
| Working Humidity | 10﹪-60﹪ | |
| Working Temperature | –20℃--+50℃ | |
