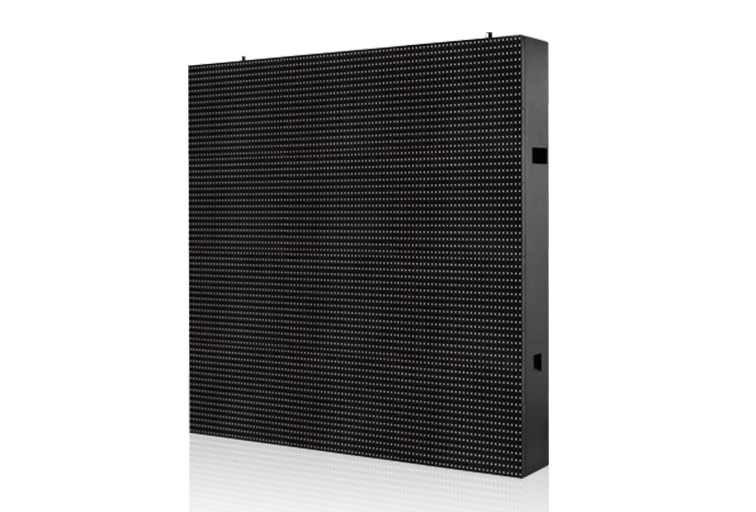

indoor pitch3mm led display
|
Parameters |
P3 |
P4 |
P5 |
P6 |
P7.62 |
P8 |
P10 |
|
Pixel pitch（mm） |
3 |
4 |
5 |
6 |
7.62 |
8 |
10 |
|
Density（dots/m2） |
111111 |
62500 |
40000 |
27777 |
17222 |
15625 |
10000 |
|

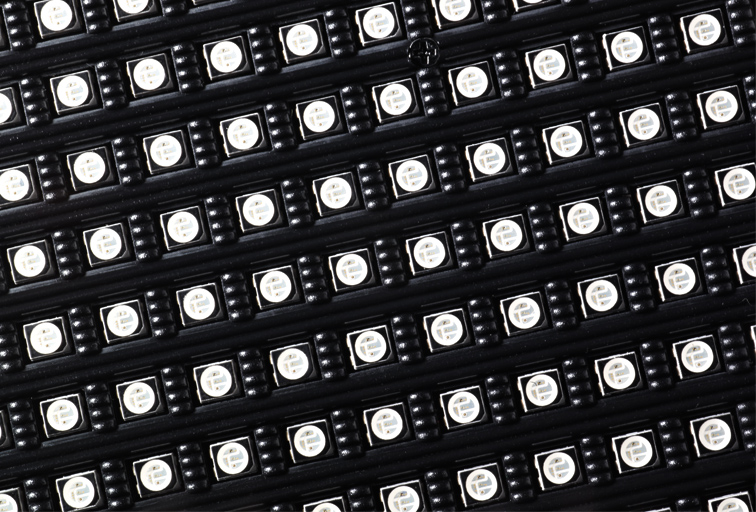

Leds type |
SMD2121 |
SMD2121 |
SMD3528 |
SMD3528 |
SMD3528 |
SMD3528 |
SMD3528 |
|
View Angle (° ) |
Horizontal 120 , vertical 140 |
Horizontal 120 , vertical 140 |
Horizontal 120 , vertical 140 |
Horizontal 120 , vertical 140 |
Horizontal 120 , vertical 140 |
Horizontal 120 , vertical 140 |
Horizontal 120 , vertical 140 |
|
Brighness (cd/m2) |
1200 |
1600 |
1600 |
1800 |
1600 |
1200 |
1200 |
|
Scan method |
1/16 scan |
1/16 scan |
1/16 scan |
1/8 scan |
1/8 scan |
1/8 scan |
1/8 scan |
|
Refresh Rate (Hz) |
≥1000 |
≥1000 |
≥1000 |
≥1000 |
≥1000 |
≥1000 |
≥1000 |
|
Panel size（mm） |
576×576 |
640×640 |
800×800 |
960×960 |
976×976 |
1024×1024 |
1280×1280 |
|
Module resolution(dots) |
192×192 |
160×160 |
160×160 |
160×160 |
128×128 |
128×128 |
128×128 |
|
Module weight (Kg/m2) |
35 |
35 |
35 |
35 |
35 |
35 |
35 |
|
Working voltage (V) |
AC 110-240 |
AC 110-240 |
AC 110-240 |
AC 110-240 |
AC 110-240 |
AC 110-240 |
AC 110-240 |
|
Max. power |
750 |
925 |
800 |
900 |
680 |
700 |
500 |
