outdoor pitch 12mm led display
|
Parameters |
P10-DIP |
P12-DIP |
P16-DIP |
P20-DIP |
P25-DIP |
|
Pixel pitch（mm） |
10 |
12 |
16 |
20 |
25 |
|
Density(dots/m²) |
10000 |
6944 |
3906 |
2500 |
1600 |
|

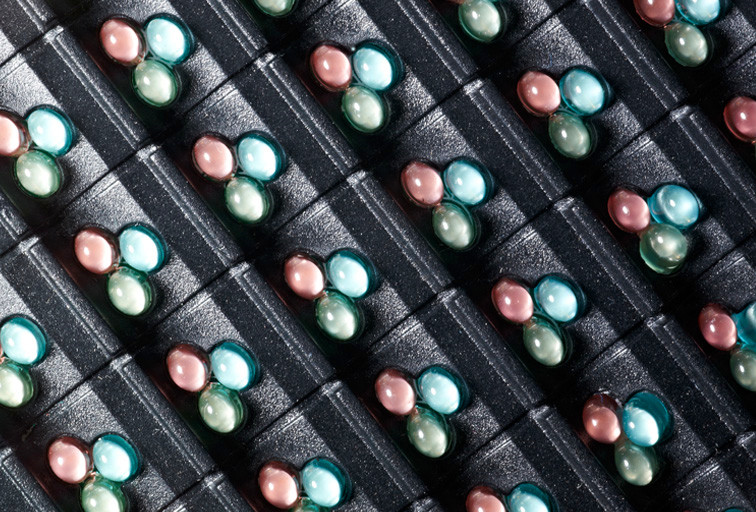

Leds configuration |
1R1G1B |
1R1G1B |
1R1G1B |
1R1G1B |
1R1G1B |
|
View angle (° ) |
Horizontal 120 , vertical 60 |
Horizontal 120 , vertical 60 |
Horizontal 120 , vertical 60 |
Horizontal 120 , vertical 60 |
Horizontal 120 , vertical 60 |
|
Brightness (cd/m2) |
7000 |
7000 |
7000 |
7000 |
7000 |
|
Scan method |
1/4Scan |
1/4 Scan |
Static |
Static |
Static |
|
Refresh rate (Hz) |
≥1000 |
≥1000 |
≥1000 |
≥1000 |
≥1000 |
|

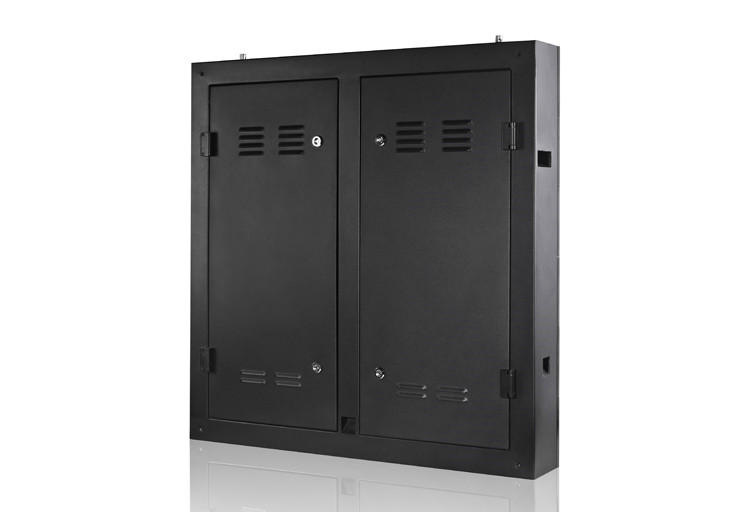

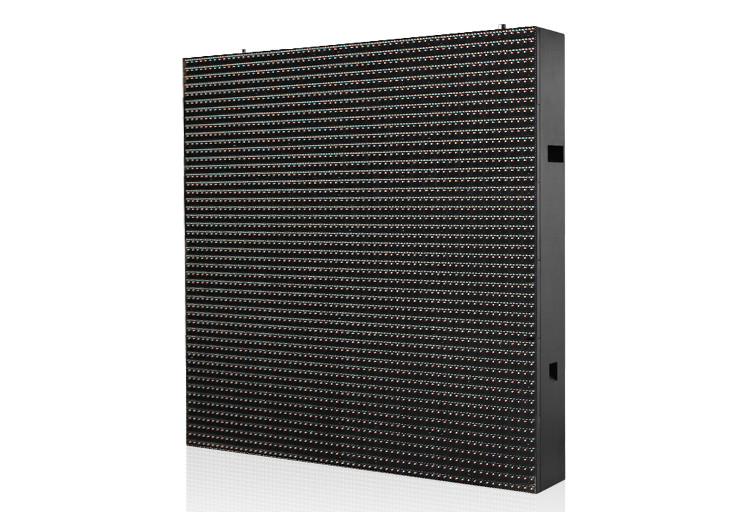

Cabinet size（mm） |
960×960 |
960×960 |
1024×768 |
1280×960 |
1200×1200 |
|
Cabinet Resolution(dots) |
96×96 |
80×80 |
64×48 |
64×48 |
48×48 |
|
Cabinet weight (Kg/m2) |
50~60 |
50~60 |
50~60 |
50~60 |
50~60 |
|
Working voltage (V) |
AC 110-240 |
AC 110-240 |
AC 110-240 |
AC 110-240 |
AC 110-240 |
|
Max. power consumption （W/m2） |
655 |
620 |
600 |
580 |
400 |
